[PR #228] feat: recognize the served model and the owning service in the COMMAND column #227

New issue

Open

opened 2026-10-02 23:15:09 -06:00 by gitea-mirror · 0 comments

gitea-mirror commented

2026-10-02 23:15:09 -06:00

Owner

📋 Pull Request Information

Original PR: https://github.com/XuehaiPan/nvitop/pull/228
Author: @xusy-sz
Created: 9/21/2026
Status: 🔄 Open

Base: main ← Head: feat/model-service-recognition

📝 Commits (2)

cfaebeb feat(api): recognize the served model and the owning service of processes
1d4afac feat(tui): show the full command line and the working directory in the process details

📊 Changes

21 files changed (+1945 additions, -42 deletions)

View changed files

📝 CHANGELOG.md (+2 -0)
📝 README.md (+25 -6)
➕ docs/source/api/recognizer.rst (+40 -0)
📝 docs/source/index.rst (+1 -0)
📝 docs/source/spelling_wordlist.txt (+8 -0)
📝 nvitop/__init__.py (+2 -0)
📝 nvitop/api/__init__.py (+1 -0)
📝 nvitop/api/process.py (+12 -6)
➕ nvitop/api/recognizer.py (+597 -0)
📝 nvitop/cli.py (+22 -0)
📝 nvitop/tui/library/__init__.py (+10 -1)
📝 nvitop/tui/library/process.py (+13 -2)
📝 nvitop/tui/screens/metrics.py (+144 -27)
📝 pyproject.toml (+5 -0)
📝 setup.py (+3 -0)
➕ tests/conftest.py (+28 -0)
➕ tests/test_metrics_details.py (+175 -0)
➕ tests/test_recognizer.py (+358 -0)
➕ tests/test_recognizer_container.py (+178 -0)
➕ tests/test_recognizer_service.py (+62 -0)

...and 1 more files

📄 Description

Motivation

Inference engines rename their worker processes with setproctitle: vLLM shows VLLM::EngineCore, and ollama's embedded vLLM workers do the same. On a shared GPU server this makes the process table uninformative — several VLLM::EngineCore rows on one card, with no way to tell which model owns the memory without logging into the box and digging through /proc. A bare python main.py is equally anonymous.

This PR enriches the COMMAND column so the table answers "which model is this, whose service is this" at a glance.

What it does

Engine processes renamed to the ENGINE::role convention show the model looked up on the parent chain: --served-model-name / --model / --model-id / --model_name flags, the positional argument of serve, HuggingFace cache paths (models--Org--Name), and Ollama blob paths resolved through the manifests of the model store. Works for vLLM, SGLang, ollama's vLLM workers, and other engines following the convention.
Interpreter scripts show the owning project directory: main.py @ octopus-api.
Containerized processes (Docker, LXD) show the container name and the container view of the path: main.py @ vllm-svc:/workspace.
The process metrics screen (Enter) additionally shows the full command line (wrapped, wide-character aware) and the working directory.
Unrecognized processes keep their original command text byte-identically, and the whole feature can be turned off with --no-model-detect / NVITOP_NO_MODEL_DETECT=1.

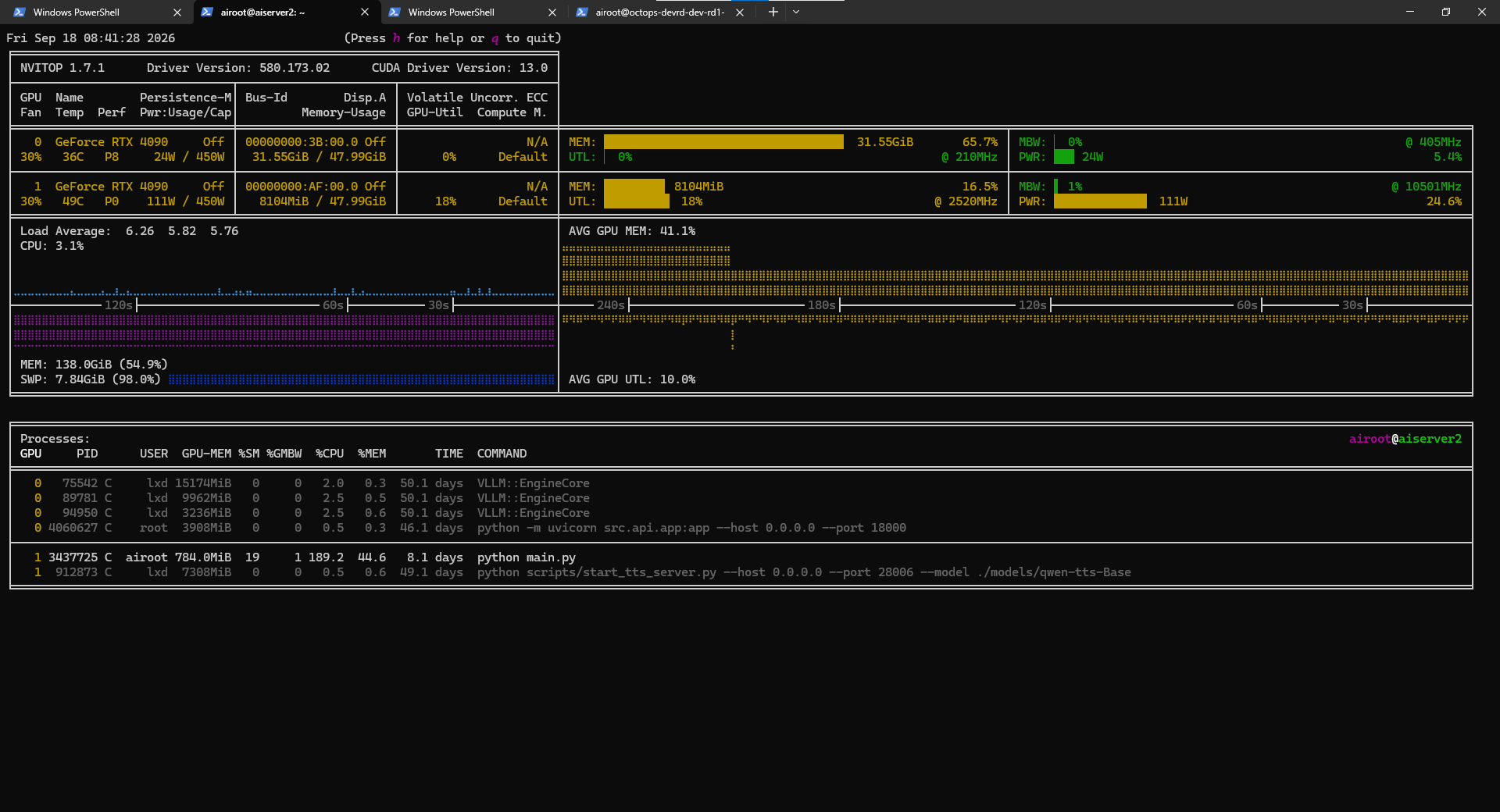

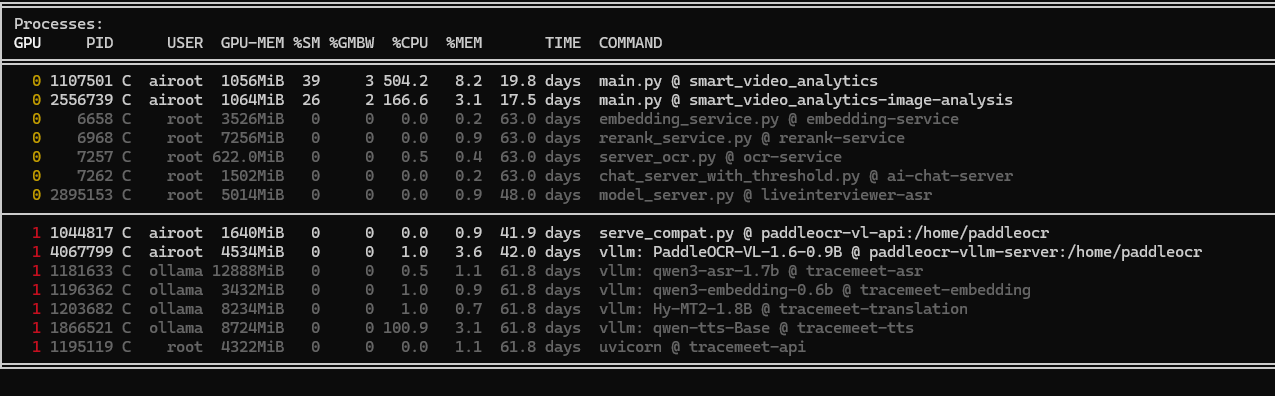

Before / after, from a real fleet (ollama's vLLM workers, paddleocr genai_server --backend vllm in Docker, bare scripts):

Before	After

Design

Single seam: the TUI process class overrides command(); nvitop.api keeps the raw text, so library and exporter consumers are unaffected.
Pluggable rules: engine rules and service rules are registries; the first matching rule provides the label, and container attribution composes uniformly. New engines should need one small function.
Fallback contract: when nothing is recognized, the display is byte-identical to the current behavior (locked by tests, including the batch print path).
Performance: process facts (parent chain, cwd, cgroup) are gathered once per PID with TTL caches on the snapshot thread; Docker name lookups are cached per container ID; unreadable facts are cached with a shorter TTL so they are retried.
Scope: no new columns, no GPU-panel summary, no remote transport. Kubernetes pods and processes hidden by PID namespaces are deliberately out of scope.

Testing

This distribution ships no test infrastructure yet, so tests/ is new (pytest): 107 tests covering the recognizer boundary, the fallback contract, the switch, the platform guard, container cgroup fixtures (Docker cgroupfs/systemd, LXD, k8s ignored), and the detail view helpers. The layout helper is verified to fill the terminal height exactly.
ruff check / ruff format clean; mypy clean on the new module (no new errors project-wide).
Verified on a fleet of GPU servers against real workloads: vLLM under ollama, paddleocr genai_server --backend vllm inside Docker, LXD services, and bare python main.py scripts.

Notes

Happy to flip the default to opt-in if maintainers prefer the conservative default; the switch exists either way.
The metrics screen gains three header rows, so its minimum comfortable terminal height moves from 18 to 21 rows; below that the graph areas clamp as before and the terminal clips the bottom.

_{🔄 This issue represents a GitHub Pull Request. It cannot be merged through Gitea due to API limitations.}
